环缝焊接专机的原理以及功能特点

来源:http://www.tayfsk.com/  发布时间:2023-05-20 浏览次数:0

环缝自动焊机是一种能完成各种圆形、环形焊缝焊接的通用自动焊接设备。可用于碳钢、低合金钢、不锈钢、铝及其合金等材料的优良焊接,并可选择氩弧焊(填丝或不填丝)、熔化极气体保护焊,等离子焊等焊接电源组成一套环缝自动焊接系统。下面山东焊接专机厂家来讲讲环缝焊接专机功能特点:
Circular seam automatic welding machine is a universal automatic welding equipment that can complete various circular and circular weld seams. It can be used for excellent welding of materials such as carbon steel, low alloy steel, stainless steel, aluminum and its alloys, and can choose welding power sources such as argon arc welding (with or without wire filling), gas shielded metal arc welding, plasma welding, etc. to form a set of automatic circumferential welding system. Below, the Shandong welding machine manufacturer will talk about the functional characteristics of the circumferential welding machine:
1.根据工件形状大小不不同,可将环缝自动焊机分为:a立式环缝自动焊机、b卧式环缝自动焊机;
1. According to the different shapes and sizes of workpieces, automatic circumferential welding machines can be divided into: a vertical circumferential welding machine, b horizontal circumferential welding machine;
2.立式环缝自动焊机是一种小巧、价廉物美、操作简单方便,能完成各种小型的圆形、环形焊缝焊接的通用自动焊接设备。其特点就是适用于一些小型工件的环缝焊接,而且工件不宜过,长如手指长短的工件较适合焊接;
2. The vertical circumferential automatic welding machine is a compact, cost-effective, and easy to operate universal automatic welding equipment that can complete various small circular and circumferential welding seams. Its characteristic is that it is suitable for circumferential welding of some small workpieces, and the workpieces should not be too long. Workpieces as long as fingers are more suitable for welding;

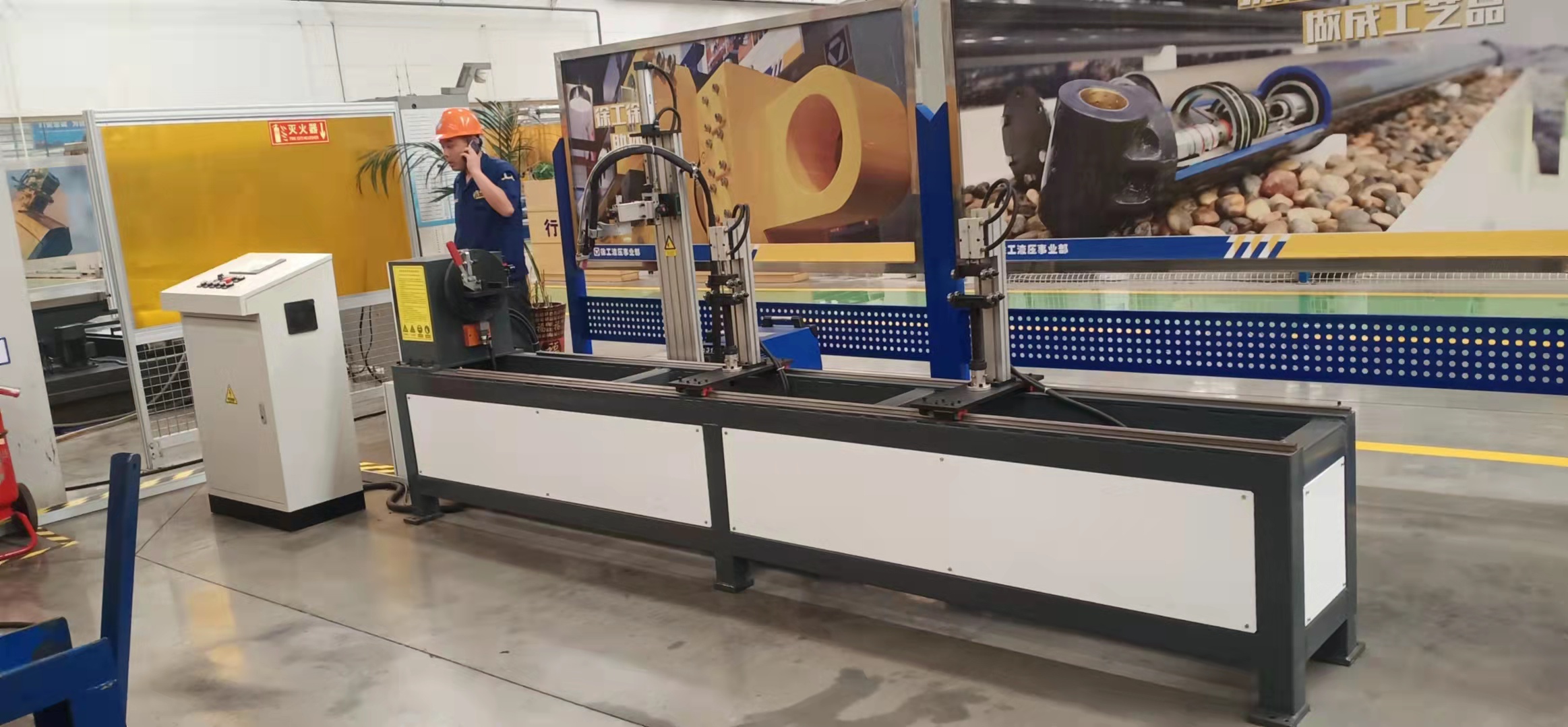

3.卧式与立式环缝焊机相比对焊件的长度没有过多的限制.三、四米的长管都可轻松焊接,其性能特点:
Compared with vertical circumferential welding machines, there are no significant limitations on the length of the welded parts. Three or four meter long pipes can be easily welded, and their performance characteristics are:
床身采用卧式结构,由焊接结构件经退火后精加工而成,保证床身导轨不变形;
The bed adopts a horizontal structure, which is made of welded structural components after annealing and precision processing, ensuring that the bed guide rails do not deform;
回转机头采用直流电机或交流变频电机驱动,速度稳定可靠;
The rotary head is driven by a DC motor or an AC variable frequency motor, ensuring stable and reliable speed;
主轴端部安装有焊接夹具或三爪卡盘,用于装夹定位工件;
The end of the spindle is equipped with a welding fixture or a three jaw chuck for clamping and positioning workpieces;
山东焊接专机
尾座可采用气动或手动顶紧方式,端部可根据工件形式的不同选用不同的焊装夹具或活动顶部;
The tailstock can be pneumatically or manually tightened, and different welding fixtures or movable tops can be selected for the end according to the different forms of the workpiece;
尾座可在床身导轨上滑动,可调整机头尾座的距离以适应不同长度的工件;
The tail seat can slide on the bed guide rail, and the distance between the machine head and tail seat can be adjusted to adapt to different lengths of workpieces;
焊枪机构可根据工件焊接位置的不同,沿导轨方向移动到相应位置。
The welding gun mechanism can move to the corresponding position along the guide rail direction according to the different welding positions of the workpiece.
环缝焊接专机的原理以及功能特点相关事项就讲解到这里了,希望能够帮助到您,还有什么事项就来我们网站http://www.tayfsk.com咨询!
That's all for explaining the principle and functional characteristics of the circumferential welding machine. I hope it can help you. If you have any other matters, please come to our website http://www.tayfsk.com consulting service
