自动焊接设备的正确打开方式包含什么?

来源:http://www.tayfsk.com/  发布时间:2023-03-02 浏览次数:0

自动焊接设备的正确打开方式,主要是包括两个步骤,一是正确的操作方法,二是日常的维护保养办法。记住这两条就可以大大提高工作效率,节约企业的生产成本了。下面山东自动焊接设备厂家就来为您讲解吧。
The correct opening method of automatic welding equipment mainly includes two steps, one is the correct operation method, and the other is the daily maintenance method. Keeping these two points in mind can greatly improve work efficiency and save production costs of enterprises. Next, Shandong automatic welding equipment manufacturer will explain to you.
一、自动焊接设备操作方法:
1、 Operation method of automatic welding equipment:
1,根据产品规格更换焊头,和一焊接夹具的CP线。
1. Replace the welding head and CP line of a welding fixture according to the product specification.
2,调整好两焊头间相焊接的压力和间距,两焊头间距以不损伤以及电容芯子端面需要为准。
2. Adjust the pressure and spacing of phase welding between the two welding heads. The spacing between the two welding heads shall be subject to the requirements of no damage and the end face of the capacitor core.
3.调节焊接电压控制焊接电流大小,一般在30V左右..
3. Adjust the welding voltage to control the welding current, generally around 30V
4.调整调整钮(1)调整焊接速度适当位置。
4. Adjust the adjusting knob (1) to adjust the welding speed to the proper position.
5,调节旋钮(b)调节所述振动电容器的输送速度中度的轨道位置。
5. Adjust knob (b) to adjust the conveying speed of the vibrating capacitor to a moderate rail position.
6,焊机工作时间进行设定:0.1S。
6. Set the working time of the welding machine: 0.1S.
7,在0.5MPa的压力控制。
7. Control the pressure at 0.5MPa.
8、调节工作结束即可开始通过焊接。
8. After the adjustment, the welding can be started.
9.在操作中发现异常应立即切断电源,通知维修人员进行维修..
9. In case of any abnormality during operation, immediately cut off the power supply and notify the maintenance personnel for maintenance
10.每天结束时,关闭电源和空气,清洁和维护设备。
10. At the end of each day, turn off the power and air, clean and maintain the equipment.

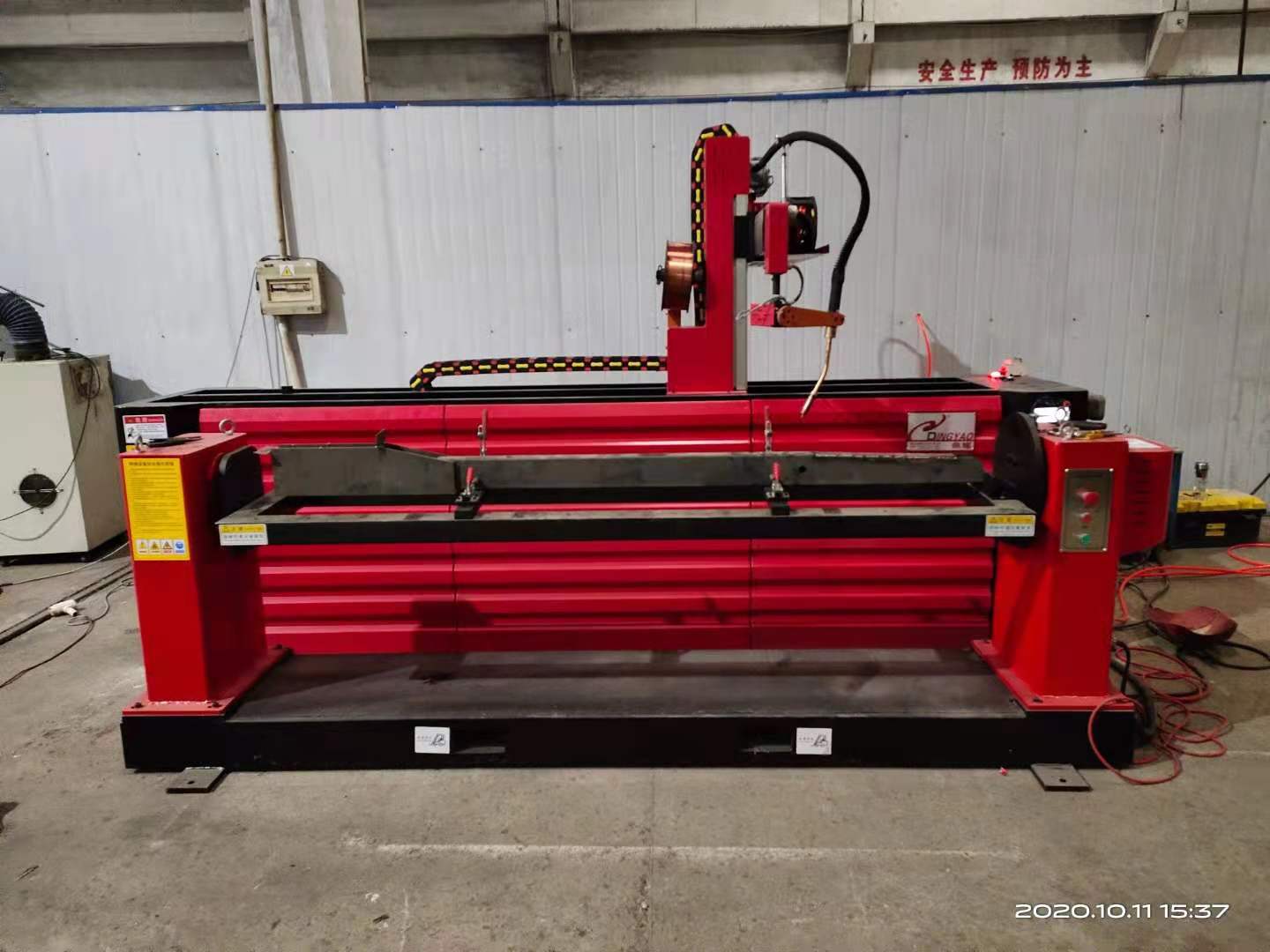

山东自动焊接设备
二、自动焊接设备的维护
2、 Maintenance of automatic welding equipment
1,主机中各活动主要部位的导轨系统须进行加注高温黄油(300℃),周期为每星期只有一次。
1. The guide rail system of the main moving parts in the main engine must be filled with high-temperature grease (300 ℃), and the cycle is only once a week.
2,刷切耳机的耳机和共轨润滑脂填充循环每周一次。
2. Brush and cut the earphones and fill them with common rail grease once a week.
3,夹具教学活动导杆部位进行加注机油润滑,夹具可灵活运用动作即可。
3. The fixture teaching guide rod shall be lubricated with oil, and the fixture can be flexibly used.
4.检查夹具的四个定位销,如果定位销的定位面卡有引线,须及时清理,否则会影响铸焊质量..
4. Check the four locating pins of the fixture. If the locating surface of the locating pin is stuck with leads, it must be cleaned in time, otherwise the casting and welding quality will be affected
5,检查夹具的四个发展定位销的焊接点,此焊点因长期使用后成为可能导致出现资金断裂。若有断裂,焊接后即可进行正常工作使用。
5. Check the welding points of the four development positioning pins of the fixture. This welding point may lead to capital fracture after long-term use. If there is any fracture, it can be used for normal work after welding.
6,检查在水中三重气体源在玻璃中,如果水位超过红线,须将水排出。
6. Check that the triple gas source in the water is in the glass. If the water level exceeds the red line, the water must be discharged.
7、检查气源三联件中的油杯中的油,若油位低于成本低线,须进行加注说明机油(油雾器的滴油量为10秒/滴)。
7. Check the oil in the oil cup in the air supply triplet. If the oil level is lower than the low cost line, fill the oil (the oil drip volume of the oil mist is 10 seconds/drop).
8,检查在水箱中的水位,水位高于高线或小线之下,被要求停止使用设备
8. Check the water level in the water tank. If the water level is higher than the high line or lower than the small line, the equipment is required to stop using
综上所述,自动焊接设备的两大类正确打开方式,操作和维护保养细则要重视起来,就给大家介绍完毕了,大家是不是又学到了不少东西呢?如果大家还有什么不明白的地方,可以在网站http://www.tayfsk.com联系我们,也可以打电话咨询。
To sum up, we should pay more attention to the operation and maintenance rules of the two main types of correct opening methods of automatic welding equipment, and then introduce them to you. Have you learned a lot? If there is anything you don't understand, you can visit the website http://www.tayfsk.com Contact us or call us for consultation.
