自动化焊接设备有哪些部分组成?

来源:http://www.tayfsk.com/  发布时间:2021-04-16 浏览次数:

随着国家中国制造2025战略计划,传统工业生产已逐步开始向数字化、智能化、自动化转型。传统的生产模式已无法满足企业生产经营发展的需求,在这样的背景下,自动化焊接设备应运而生,为广大中心企业发展带来更多优势,有力的提升了企业的市场综合竞争力。那么,你对自动化焊接设备的构成和种类的了解有多少呢?今天就让九德小编来概述下,希望对大家有所帮助。

With the national made in China 2025 strategic plan, traditional industrial production has gradually begun to digital, intelligent and automatic transformation. The traditional production mode has been unable to meet the needs of the development of enterprise production and management. In this context, automatic welding equipment came into being, which brings more advantages for the development of the majority of central enterprises and effectively improves the market competitiveness of enterprises. So, how much do you know about the composition and types of automatic welding equipment? Today, let Jiude Xiaobian give an overview, hoping to help you.
一、自动化焊接设备的组成部分:
1、 Components of automatic welding equipment:
1、焊接机器人:这是自动化焊接设备的重要组成部分,其主要用途是包括:焊接、切割、码垛、喷涂、搬运等。
1. Welding robot: This is an important part of automatic welding equipment, its main uses include: welding, cutting, palletizing, spraying, handling, etc.
2、数字化、智能化焊接电源:其输出功率和焊接特性应与拟用的焊接生产工艺方法相匹配,并装有与主控制器相连接的接口。
2. Digital and intelligent welding power source: its output power and welding characteristics should match with the proposed welding production process, and the interface with the main controller should be installed.
3、送丝机及其控制与调速系统:对于送丝速度控制精度要求较高送丝机,其控制电路应加测速反馈。
3. Wire feeder and its control and speed regulation system: for wire feeder with high precision, speed measurement feedback should be added to its control circuit.

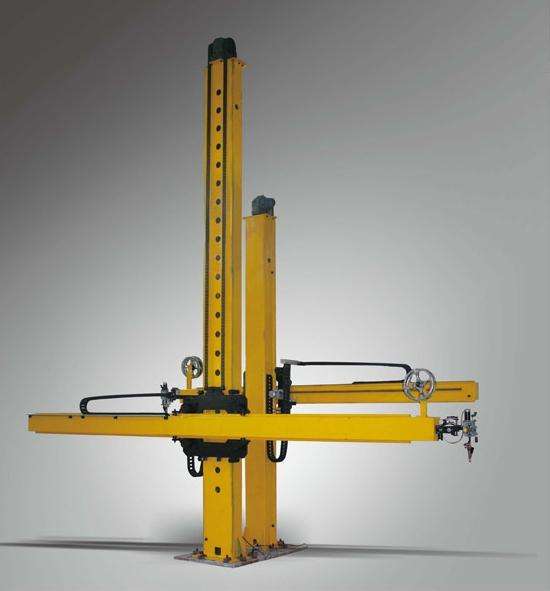

4、焊接机头用其移动机构:其由焊接机头,焊接机头支承架,悬挂式拖板等组成,地于精密型焊头机构,其驱动系统应采用装有编码器的伺服电动机。
4. The moving mechanism of welding head: it is composed of welding head, welding head support frame, suspended carriage, etc., which is based on precision welding head mechanism, and its driving system shall adopt servo motor with encoder.
5、焊件移动或焊接变位机:如焊接滚轮架,头尾架翻转机,回转平台和变位机等,精密型的移动变位机构应配伺服电动机驱动。
5. Weldment moving or welding positioner: such as welding roller carrier, head and tail frame turnover machine, rotary platform and positioner, etc. precision moving positioner shall be driven by servo motor.
6、焊件夹紧机构
6. Clamping mechanism of weldment
7、主控制器:也称作系统控制器,主要用于各组成部分的联动控制,焊接程序的控制,焊接参数的设定,调整和显示。必要时可扩展故障诊断和人机对话等控制功能。
7. Main controller: also known as system controller, it is mainly used for linkage control of various components, control of welding procedure, setting, adjustment and display of welding parameters. If necessary, the control functions such as fault diagnosis and man-machine dialogue can be extended.
8、计算机系统软件:自动化焊接设备中常用的计算机软件有编程软件、功能软件,工艺方法软件和专家系统等。
8. Computer system software: programming software, function software, process method software and expert system are commonly used in automatic welding equipment.
9、焊头导向或跟踪机构:弧压自动控制器,焊枪横摆器和监控系统。
9. Welding head guiding or tracking mechanism: arc voltage automatic controller, welding gun swaying device and monitoring system.
10、辅助装置:如送丝系统,循环水冷系统、焊剂回收输送装置、焊丝支架、电缆软管及拖链机构结构设计电气控制设计三大部分。
10. Auxiliary devices: such as wire feeding system, circulating water cooling system, flux recovery and conveying device, welding wire bracket, cable hose and drag chain structure design, electrical control design.
随着焊接技术的不断前进和创新,相信未来的自动化焊接设备将会给大家带来更多惊喜,为国家和广大企业创造出更多价值。
With the continuous progress and innovation of welding technology, I believe that the future automatic welding equipment will bring you more surprises and create more value for the country and the majority of enterprises.
