操作人员应注意自动焊接设备的使用

来源:http://www.tayfsk.com/  发布时间:2023-03-23 浏览次数:0

在自动焊接设备焊接过程中有许多问题需要注意,因为稍不小心就可能会造成人员的伤害或者是设备的损害。所以,在设备的使用中要多加注意,那都有什么问题需要注意呢?下面就来一起了解一下吧。
There are many issues that need attention during the welding process of automatic welding equipment, as a slight carelessness may cause personal injury or equipment damage. Therefore, it is necessary to pay more attention to the use of equipment. What issues do you need to pay attention to? Let's take a look together.
1、应检查并确认送丝滚轮的沟槽和齿形完好,滚轮、导电嘴(块)磨损或接触不良时应更换。
1. The groove and tooth shape of the wire feeding roller should be inspected and confirmed to be intact. The roller and conductive nozzle (block) should be replaced if they are worn or have poor contact.
2、运转前,检查山东自动焊接设备减速箱油箱中的润滑油,不足时添加。软管式送丝机的软管槽应保持清洁,并定期清洁。
2. Before operation, check the lubricating oil in the gearbox oil tank of Shandong automatic welding equipment, and add it if it is insufficient. The hose groove of the hose type wire feeder should be kept clean and regularly cleaned.
3、在操作过程中,应及时排放焊接过程中产生的有害气体,并在通风不良的舱室或容器中安装通风设备。
3. During operation, harmful gases generated during welding should be promptly discharged, and ventilation equipment should be installed in poorly ventilated compartments or containers.
4、焊枪电缆不可用器具积压或受重压,折叠角度不得过小(送丝软管的半径不得小于150毫米),否则会损坏内部电缆,留下事故隐患。焊接时不得切换电压调试开关。5、焊接操作时,焊机输出接口等带电部件不得触摸。
4. Welding gun cables should not be overstocked or heavily pressed with tools, and the folding angle should not be too small (the radius of the wire feeding hose should not be less than 150mm), otherwise internal cables may be damaged, leaving a potential accident. Do not switch the voltage commissioning switch during welding. 5. During welding operations, live parts such as the output interface of the welding machine must not be touched.

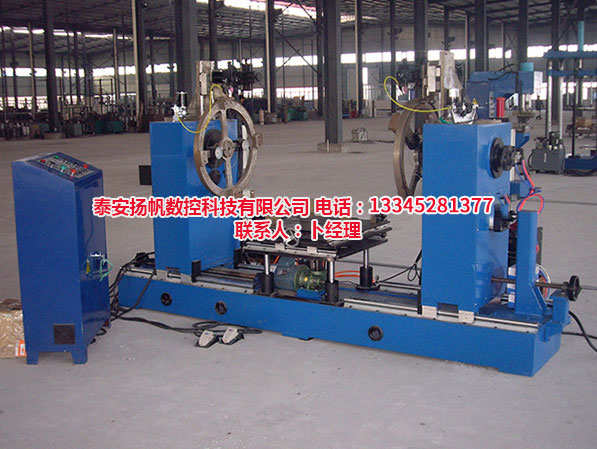

山东自动焊接设备
6、面板旋钮不得切换或调试过猛,以免损坏设备。
6. The panel knob should not be switched or adjusted excessively to avoid damaging the equipment.
7、每次山东自动焊接设备焊接前,检查焊机是否连接正确,接地线是否可靠。
7. Before each welding with Shandong automatic welding equipment, check whether the welding machine is connected correctly and whether the grounding wire is reliable.
8、不允许敲砖焊机上的熔渣。
8. It is not allowed to knock bricks to remove slag from the welding machine.
9、使用时,应在负荷持续率范围内进行。过载使用会加速部件的老化,降低焊机的使用寿命,甚烧坏焊机。
9. When using, it should be carried out within the range of load duration. Overload use can accelerate the aging of components, reduce the service life of the welding machine, and even burn out the welding machine.
10、通电后,禁止触摸焊机带电部分。工作完成或暂时离开现场时,就要切断输入电源。
10. After being powered on, it is prohibited to touch the live parts of the welding machine. Cut off the input power supply when completing the work or temporarily leaving the site.
此外检查每次焊接操作通电前,操作员应检查以下项目:
In addition, before each welding operation is energized, the operator should check the following items:
1、安装时确保焊机良好的相互接地可靠。
1. During installation, ensure that the welding machines are well grounded and reliable.
2、确保焊机的输出线和输入线完好无损且不外露。
2. Ensure that the output and input lines of the welding machine are intact and not exposed.
3、焊机安装固定后,应由熟悉行业的人员定期进行检查(多时间不超过6个月)。
3. After the welding machine is installed and fixed, regular safety inspections should be conducted by professionals familiar with the industry (up to a maximum of 6 months).
4、内部不得有松动等异常情况。
4. There shall be no abnormal conditions such as looseness inside.
通过以上的介绍,相信大家对自动焊接设备都有一定的认识,希望以上的介绍可以帮助到大家。更多相关事项就来我们网站http://www.tayfsk.com咨询吧!
Through the above introduction, I believe everyone has a certain understanding of automatic welding equipment, and I hope the above introduction can help everyone. For more related matters, please visit our website http://www.tayfsk.com Consult!
