焊接变位机使用中可能出现的机械故障

来源:http://www.tayfsk.com/  发布时间:2022-08-27 浏览次数:

焊接变位机是作为一种通用、高效的工业自动焊接设备越来越多的被应用到各种行业,操作者须具备基本的焊接变位机小常识,所以今天山东数控焊接设备厂家为大家分享下焊接变位机在使用过程中可能出现的机械故障以及参考解决方案。
As a general and efficient industrial automatic welding equipment, welding positioner is more and more applied to various industries. Operators must have basic knowledge of welding positioner. Therefore, Shandong CNC welding equipment manufacturer will share with you the possible mechanical faults and reference solutions of welding positioner during its use.
1.工作台不回转;
1. The workbench does not rotate;
(1)触点接触不好,线圈故障;处理方法:处理接触器触点,必要时更换接触器。
(1) Poor contact and coil fault; Handling method: handle the contactor contact and replace the contactor if necessary.
(2)热继电器失灵;处理方法:更换热继电器或使其复位。
(2) Thermal relay failure; Treatment method: replace the thermal relay or reset it.
(3)按钮发生故障;处理方法:修理或更换按钮。
(3) Button failure; Handling method: repair or replace the button.
(4)电机抱闸路线断开;处理方法;检查电机抱闸装置,将负载接线端子紧固,使其接触良好
(4) The motor band brake line is disconnected; Treatment method; Check the motor band brake device and fasten the load terminal to ensure good contact
(5)变频器工作不正常;处理方法:重新设置变频器
(5) The frequency converter does not work normally; Processing method: reset the frequency converter
2.按下按钮后,升降动作没有动作;
2. After pressing the button, the lifting action does not act;
(1)限位机械触点故障;处理方法:更换限位。
(1) Limit mechanical contact failure; Treatment method: replace the limit.
(2)按钮触点接触不良或按钮复位弹簧损坏处理方法:如修复不了,必要时更换按扭
(2) Treatment method for poor contact of button contact or damage of button return spring: if it cannot be repaired, replace the button if necessary
(3)热继电器故障;处理方法:调整整定电流或更换热继电器
(3) Thermal relay fault; Treatment method: adjust the setting current or replace the thermal relay

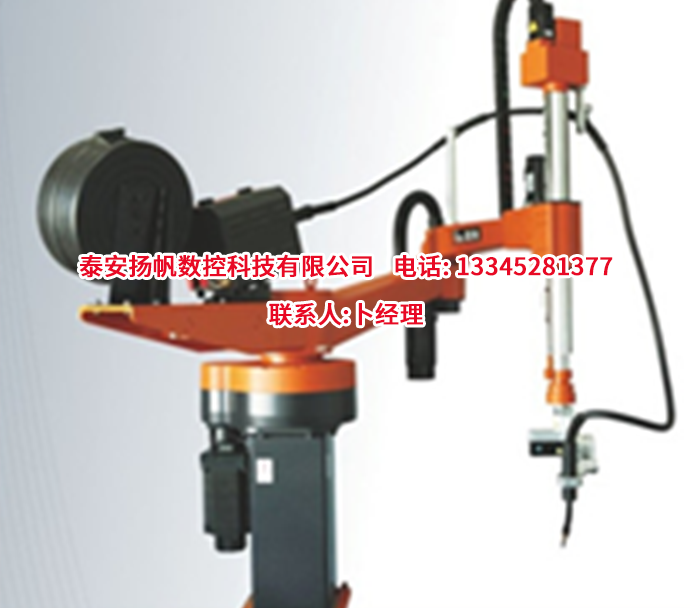

山东数控焊接设备
(4)负载接线端子接触不良;处理方法:检查接触器并处理必要时更换接触器,紧固负载接线端子
(4) Poor contact of load terminal; Handling method: check the contactor and handle it. If necessary, replace the contactor and fasten the load terminal
3.变位机回转工作台回转速度不可调节;
3. The rotation speed of the rotary table of the positioner cannot be adjusted;
(1)远控开关手控的调速电位器失灵;处理方法:更换调速电位器
(1) The manual speed regulating potentiometer of the remote control switch fails; Treatment method: replace the speed regulating potentiometer
(2)正向,反向继电器不动作;处理方法:检查接线是否松动,继电器有无故障,将线拧牢或更换继电器。
(2) Forward and reverse relays do not act; Treatment method: check whether the wiring is loose and whether the relay is faulty. Screw the wire firmly or replace the relay.
(3)变频器面板接触松动;处理方法:检查变频器,紧固螺丝使其接触良好。
(3) Loose contact of frequency converter panel; Treatment method: check the frequency converter and tighten the screws to ensure good contact.
对焊接变位机这一焊接设备,可以说上述问题,是非常重要的,同时,也涉及到了基础知识及内容,所以,大家应认真对待和进行,不能有半点马虎和松懈,以免影响到知识的掌握和运用,从而,让自己得不偿失了。关注我们http://www.tayfsk.com更多了解!
It can be said that the above problems are very important for welding positioner, which involves basic knowledge and content. Therefore, we should treat and carry out them seriously, and should not be careless or lax, so as not to affect the mastery and application of knowledge, thus making our gains outweigh our losses. Follow us http://www.tayfsk.com Learn more!
