环缝自动焊接机的七个性能特点

来源:http://www.tayfsk.com/  发布时间:2022-08-06 浏览次数:0

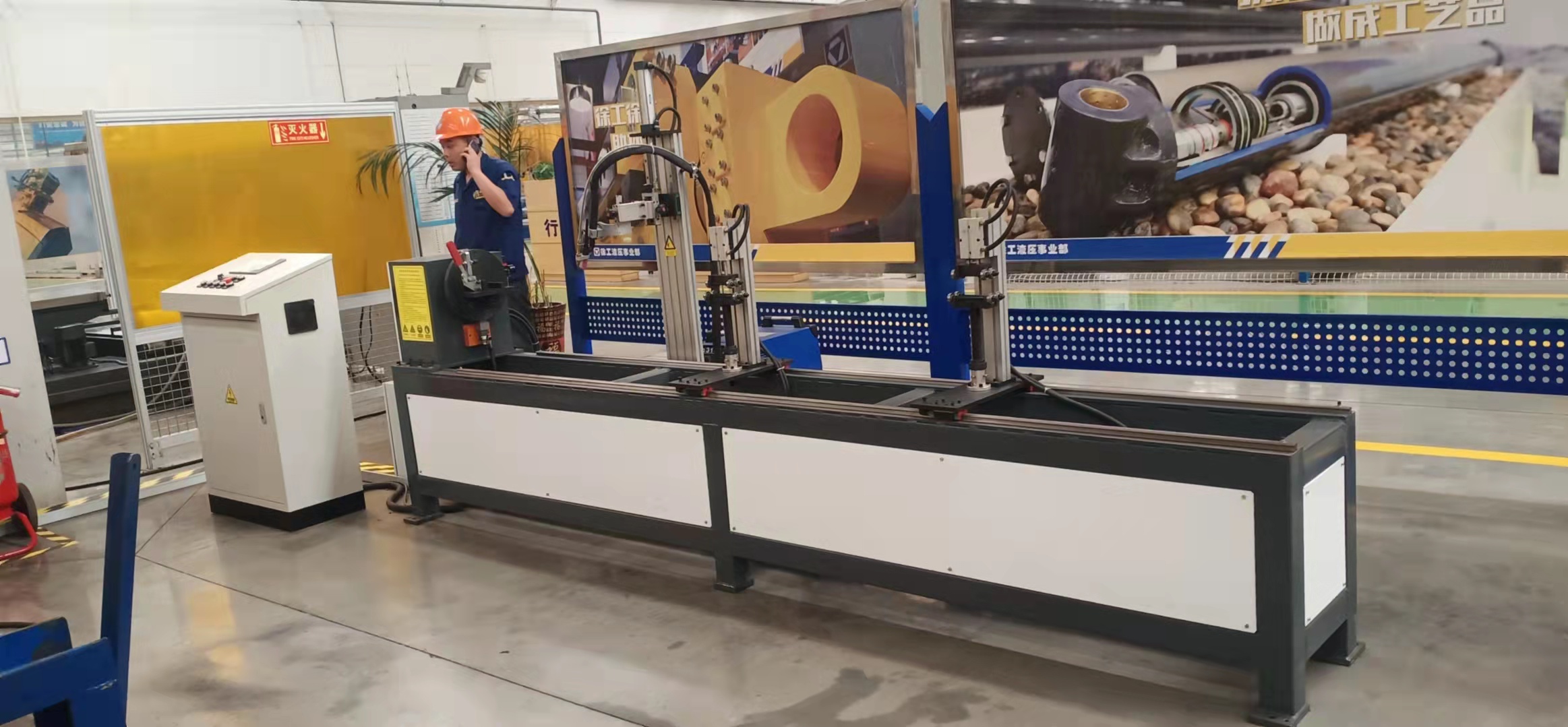

环缝自动焊接机主要用于碳钢、不锈钢圆形工件对接焊接,根据具体的要求可选择单缝、双缝或多缝。与立式环缝焊机相比对焊件的长度没有过多的限制三、四米的长管都可轻松焊接。那么环缝自动焊接机的性能特点怎么样?
The automatic circumferential seam welding machine is mainly used for butt welding of carbon steel and stainless steel round workpieces. According to specific requirements, single seam, double seam or multi seam can be selected. Compared with the vertical circumferential welding machine, the length of the butt welding parts is not too limited. The long pipe of three or four meters can be easily welded. What are the performance characteristics of the automatic circumferential seam welding machine?
1、床身采用卧式结构,由焊接结构件经退火后精加工而成,保证床身导轨不变形;
1. The bed adopts horizontal structure, which is made of welded structural parts after annealing and finishing processing to ensure that the guide rail of the bed is not deformed;
2、回转机头可采用直流电机、交流变频电机、步进电机或者伺服电机驱动,速度稳定可靠;
2. The rotary head can be driven by DC motor, AC frequency conversion motor, stepping motor or servo motor, with stable and reliable speed;
3、主轴端部安装有专用焊接夹具或三爪卡盘,用于装夹定位工件;
3. A special welding jig or a three jaw chuck is installed at the end of the main shaft for clamping and positioning workpieces;
4、尾座可采用气动、液压或手动顶紧方式,端部可根据工件形式的不同选用不同的焊装夹具或活动;
4. The tailstock can be pneumatically, hydraulically or manually tightened, and the end can choose different welding fixtures or excellent activities according to the different types of workpieces;
山东焊接专机
5、尾座可在床身导轨上滑动,可调整机头尾座的距离以适应不同长度的工件;
5. The tailstock can slide on the guide rail of the bed, and the distance between the head and tailstock can be adjusted to adapt to the workpieces of different lengths;
6、焊枪机构可根据工件焊接位置的不同,沿导轨方向移动到相应位置。
6. The welding gun mechanism can move to the corresponding position along the guide rail according to the different welding positions of the workpiece.
7、山东焊接专机厂家认为主控制器采用运动控制器可编程控制器为核心控制单元,根据用户要求,使整个设备具有很强的智能性和柔性,是一个具有较高档次,较高性价比和可靠性的控制器。
7. Shandong welding machine manufacturer believes that the main controller adopts the motion controller and programmable controller as the core control unit. According to the user's requirements, the whole equipment has strong intelligence and flexibility. It is a controller with high grade, high cost performance and reliability.
该控制器具有手动调节和自动焊接控制功能;焊缝的搭接量可预先数码设定,焊后焊枪高速复位;该控制器可根据焊接工艺要求采用多种控制输出信号选择和输出接口,具有抗干扰强、可靠性高、调速稳定、操作方便、自动化程度高等特点,可广泛地应用环形焊缝工件的焊接控制。
The controller has manual adjustment and automatic welding control functions; The overlap amount of the weld can be set digitally in advance, and the welding gun can be reset at high speed after welding; The controller can select various control output signals and output interfaces according to the requirements of welding process. It has the characteristics of strong anti-interference, high reliability, stable speed regulation, convenient operation and high degree of automation. It can be widely used in the welding control of circumferential weld workpieces.
环缝自动焊接机的七个性能特点就是上述所讲解这样了,如果您对此有需求采购的话,就来我们网站http://www.tayfsk.com咨询了解吧,我们这里可根据客户需求定制。
The seven performance characteristics of the automatic circumferential welding machine are explained above. If you need to purchase this, please come to our website http://www.tayfsk.com Consult and understand. We can customize it according to customer needs.
