自动焊接设备的分类及组合

来源:http://www.tayfsk.com/  发布时间:2021-11-19 浏览次数:

刚性焊接设备

Rigid welding equipment
也可称为初级自动化设备,大部分是根据开环控制原理设计的。虽然设备自动完成整个焊接过程,但无法对整个过程中参数的波动进行闭环反馈控制,也无法随机修正可能出现的偏差。
Also known as primary automation equipment, most of them are designed according to the open-loop control principle. Although the equipment automatically completes the whole welding process, it can not carry out closed-loop feedback control for the fluctuation of parameters in the whole process, nor can it randomly correct the possible deviation.
2自适应控制自动化焊接设备
2 adaptive control automatic welding equipment
是一种自动化程度高的焊接设备,装有电子传感电路和传感器,自动引导和跟踪焊缝轨迹,对主要参数实行闭环反馈控制。整个焊接过程将按照预设的程序和工艺参数自动完成。
It is a welding equipment with high degree of automation. It is equipped with electronic sensing circuit and sensor to automatically guide and track the weld track and implement closed-loop feedback control for main parameters. The whole welding process will be completed automatically according to the preset procedures and process parameters.
3智能化自动焊接设备
3 intelligent automatic welding equipment
它采用多种检测元件,如视觉传感器触摸传感器听觉传感器和激光扫描仪等,并借助计算机软件系统数据库和专家系统进行实时识别判断检测计算自动编程。焊接参数的存储和自动生成焊接日志文件的功能。
It uses a variety of detection elements, such as visual sensor, touch sensor, auditory sensor and laser scanner, and carries out real-time identification, judgment, detection, calculation and automatic programming with the help of computer software system database and expert system. Storage of welding parameters and automatic generation of welding log files.
自动焊接设备的组成:
Composition of automatic welding equipment:
1焊接电源其输出功率焊接特性需要与建议的工艺方法相匹配,并配有连接到主控制器的接口。
1. The output power and welding characteristics of the welding power supply shall match the recommended process method, and shall be equipped with an interface connected to the main controller.
2送丝机及其调速控制系统对于送丝机速度控制精度要求较高的送丝机,控制电路需要加速度反馈。
2 wire feeder and its speed regulation control system for wire feeder with high speed control accuracy, the control circuit needs acceleration feedback.
3焊头。其运动机构由焊头焊头支撑架悬挂小车等组成,低于焊头机构,其驱动系统需要采用带编码器的伺服电机。
山东自动焊接设备
3 welding head. Its motion mechanism is composed of welding head, welding head support frame, suspension trolley, etc., which is lower than the welding head mechanism, and its driving system needs to adopt servo motor with encoder.
4行走机构,如焊辊架头尾架翻转机转台变位机等,活动行走机构需要由伺服电机驱动。
4 traveling mechanism, such as welding roller frame, head and tail frame turnover machine, turntable positioner, etc. the movable traveling mechanism needs to be driven by servo motor.

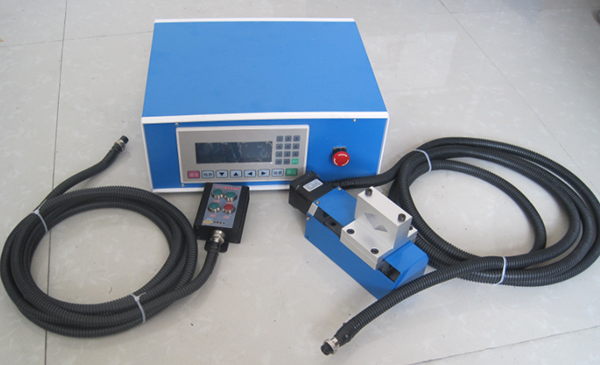

5主控制器,又称系统控制器,主要用于自动焊接设备各部件的链接控制,焊接程序的控制,焊接和扩展主要参数的设置调整和显示故障诊断和人机对话等控制功能。
5 main controller, also known as system controller, is mainly used for link control of various components of automatic welding equipment, control of welding program, setting, adjustment and display of main parameters of welding and expansion, fault diagnosis, man-machine dialogue and other control functions.
6计算机软件。设备中常用的软件有编程软件功能软件专家系统和工艺方法软件等。
6 computer software. The software commonly used in the equipment includes programming software, function software, expert system and process method software.
7送丝系统循环水冷却系统流量回收输送装置焊丝架拖链及电缆软管机构结构设计三部分电控设计等辅助装置。
7 wire feeding system circulating water cooling system flow recovery conveyor wire rack drag chain and cable hose mechanism structure design three parts electric control design and other auxiliary devices.
8焊头跟踪或导向机构弧压自动控制器焊枪偏航及监控系统。
8 welding head tracking or guiding mechanism arc voltage automatic controller welding gun yaw and monitoring system.
